Spiral Compact Fluorescent Bulb (Spiral CFL)

5W-105W, 100-240V, 2700K-6400K, Spiral Tube

Jinhui wholesales Spiral Compact Fluorescent Bulb (Spiral CFL) from China, Just 200 pieces get wholesale price, right now.

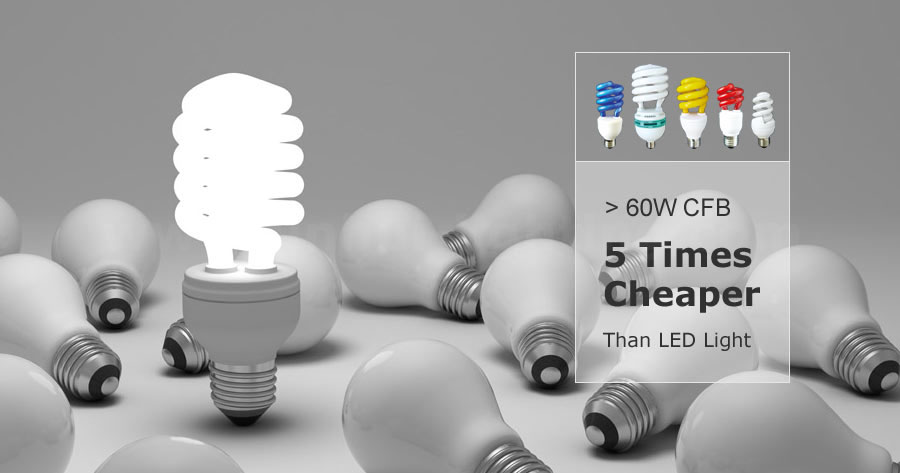

picture (image) of spiral-compact-fluorescent-light-group.jpg


The unique spiral shape, which uses design space optimally, results in a shorter overall length than other compact fluorescent bulbs.The helical geometry minimizes light trapping, providing a more optically efficient bulb.

The spiral bulb provides performance like incandescent bulb with less energy consumption. Amalgam technology for stable lumen output over broad temperature range.



Model: YB-48 cUL CE Powerful Spiral Compact Fluorescent Bulb ( Power Spiral CFL)

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, B22, E27, E39, E40
CE cUL approval
65W 85w spiral CFL

Model Wattage
(W)
Luminous
Flux(lm)
C
(mm)
Length
(mm)
Carton meas.
(20 pcs)
YB-48 65 3250 105 220 47.5*38.5*26.5cm
YB-48 85 4250 105 250 47.5*38.5*29.5cm




Model: YB-21 Compact Fluorescent Bulb ( Spiral CFL)

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K or Black
Diameter: 51mm
Base Type: E26, B22, E27
Tube Color: Purple & White



Model Wattage
(W)
Luminous
Flux(lm)
C
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-21 15 750 60 143 71.5*36*35.5cm
YB-21 18 900 60 143 71.5*36*35.5cm
YB-21 20 1000 60 147 71.5*36*36.5cm
YB-21 24 1200 60 153 71.5*36*37.5cm
YB-21 26 1300 60 163 71.5*36*39.5cm

* Spiral fluorescent black light is optional


Model: YB-22 Small Spiral Compact Fluorescent Bulb

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K, 6400K, Red, Yellow, Blue
Diameter: 40mm
Base Type: E26, B22, E27
Tube Color: Red, Yellow, Blue & White

Model Wattage
(W)
Luminous
Flux(lm)
C
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-22 7 350 42 122 54.5*27.5*31.5cm
YB-22 9 450 42 127 54.5*27.5*32.5cm
YB-22 11 550 42 132 54.5*27.5*33.5cm
YB-22 13 650 42 137 54.5*27.5*34.5cm

* Spiral fluorescent black light, red light, yellow light and blue light is optional
* Slim spiral compact fluorescent bulb and mini spiral energy saving lamp with slim and mini tube



Model: YB-23 Standard Spiral Compact Fluorescent Bulb ( Spiral CFL )

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K, 6400K, Red, Yellow, Blue or Green
Diameter: 52mm
Base Type: E26, B22, E27
Tube Color : Red, Yellow, Blue, Green & White

Model Wattage
(W)
Luminous
Flux(lm)
C
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-23 15 750 60 146 71.5*36*36.5cm
YB-23 18 900 60 146 71.5*36*36.5cm
YB-23 20 1000 60 150 71.5*36*37.5cm
YB-23 24 1200 60 156 71.5*36*38.5cm
YB-23 26 1300 60 166 71.5*36*39.5cm

* Spiral fluorescent black light, red light, yellow light, blue light and green light is optional


Model: YB-24 Standard Spiral Compact Fluorescent Bulb

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K, 6400K, Red, Yellow, Blue or Green
Base Type: E26, B22, E27
Tube Color: Red, Yellow, Blue, Green & White

Model Wattage
(W)
Luminous
Flux(lm)
C
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-24 15 750 60 146 71.5*36*36.5cm
YB-24 18 900 60 146 71.5*36*36.5cm
YB-24 20 1000 60 150 71.5*36*37.5cm
YB-24 24 1200 60 156 71.5*36*38.5cm
YB-24 26 1300 60 166 71.5*36*39.5cm

* Spiral fluorescent black light, red light, yellow light, blue bulb and green light is optional


Model: YB-43 Slim Spiral Compact Fluorescent Bulb ( Slim Spiral CFB or Slim Spiral CFL)

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, B22, E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-43 LX 15 900 60 146 71.5*36*36.5cm
YB-43 LX 18 1080 60 146 71.5*36*36.5cm
YB-43 LX 20 1200 60 150 71.5*36*37.5cm
YB-43 LX 24 1440 60 156 71.5*36*38.5cm
YB-43 LX 26 1560 60 166 71.5*36*39.5cm

Model: YB-45 Spiral Compact Fluorescent Light

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, B22, E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-45 15 750 61 146 68.5*34.5*36.5cm
YB-45 18 900 61 148 68.5*34.5*36.5cm
YB-45 20 1000 61 150 68.5*34.5*37.5cm
YB-45 24 1200 61 156 68.5*34.5*38.5cm
YB-45 26 1300 61 166 68.5*34.5*40.5cm

Model: YB-46 Spiral Compact Fluorescent Lamp ( CFL )

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, B22, E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-46 7 350 50 105 56.5*28.5*28.5cm
YB-46 9 450 50 110 56.5*28.5*29.5cm
YB-46 11 550 50 115 56.5*28.5*30.5cm
YB-46 13 650 50 120 56.5*28.5*31.5cm

* Slim spiral compact fluorescent bulb and mini spiral energy saving lamp with slim & mini tube


Model: YB-49 Spiral Compact Fluorescent Light

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, B22, E27

Model Wattage
(W)
Luminous
Flux(lm)
C
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-49 15 750 60 134 36.5*36.5*35cm
YB-49 18 900 60 134 36.5*36.5*35cm
YB-49 20 1000 60 146 36.5*36.5*37cm
YB-49 24 1200 60 150 36.5*36.5*38cm
YB-49 26 1300 60 160 36.5*36.5*39cm

Model: YB-57-1 Extreme Mini Spiral CFB ( Mini Spiral Compact Fluorescent Bulb )

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-57-1 9 540 47 95 49*25*26cm
YB-57-1 11 660 47 100 49*25*26cm
YB-57-1 13 780 47 105 49*25*26cm

* Much more slim spiral compact fluorescent bulb and mini spiral energy saving lamp with slim & mini tube, the diameter is 8mm



Model: YB-58 Extreme Mini Spiral CFL ( Mini Spiral Compact Fluorescent Light or Mini Spiral CFL)

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E14, B22, E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-58 5 250 38 88 46*23*22cm
YB-58 7 350 38 93 46*23*24cm
YB-58 9 450 38 98 46*23*26cm
YB-58 11 550 38 103 46*23*28cm

* Slim spiral compact fluorescent bulb and mini spiral energy saving lamp with slim & mini tube


Model: YB-59 Spiral Bulb Compact Fluorescent

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, B22, E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(20 pcs)
YB-58 20 1000 77 146 43*34.5*19.5cm
YB-58 30 1500 77 163 55.5*44.5*21cm

Model: YB-63 Spiral Compact Fluorescent Lamp

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E26, E27

Model Wattage
(W)
Luminous
Flux(lm)
C
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-63 35 2100 70 149 41.5*41.5*40cm
YB-63 40 2400 70 167 41.5*41.5*40cm
YB-63 45 2800 70 185 41.5*41.5*40cm


Model: YB-62 Slim Spiral CFB ( Slim Spiral Compact Fluorescent Bulb )

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E14, E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-62 7 350 32 105 37*19*27cm
YB-62 9 450 32 110 37*19*27cm
YB-62 11 550 32 113 37*19*27cm

Model: YB-63 New Style Spiral Compact Fluorescent Bulb

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-63 40 2000 70 175 37.5*37.5*42cm
YB-63 45 2250 70 190 37.5*37.5*42cm

Model: YB-68 Extreme Mini Spiral CFB ( Mini Spiral Compact Fluorescent Bulb )

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E27,E14

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-68 9 450 41 90 52*26.5*23cm
YB-68 11 550 41 100 52*26.5*25cm
YB-68 13 750 41 104 52*26.5*25cm

Model: YB-68-2 Extreme Mini Spiral CFB

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-68-2 18 1080   115 63.5*32*30cm
YB-68-2 20 1200   120 63.5*32*32cm
YB-68-2 24 1440   125 63.5*32*32cm

Model: YB-71 GU10 Extreme Mini Spiral CFB

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: Gu10

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-71 7 350 40 93 51*26*26cm
YB-71 9 450 40 98 51*26*26cm
YB-71 11 550 40 102 51*26*26cm
YB-71 13 650 40 107 51*26*26cm

Model: YB-74 Spiral Compact Fluorescent Light

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-74 15 750 48 130 30.5*30.5*31cm
YB-74 18 900 48 138 30.5*30.5*34cm
YB-74 20 1000 48 145 30.5*30.5*34cm

Model: YB-75 Spiral Compact Fluorescent Lamp ( Spiral CFL )

Supply Voltage: 100-240V/50-60Hz
Color Temperature: 2700K or 6400K
Base Type: E27

Model Wattage
(W)
Luminous
Flux(lm)
Diameter
(mm)
Length
(mm)
Carton meas.
(100 pcs)
YB-75 20 1000 52 130 34*34*33cm
YB-75 24 1200 52 142 34*34*33cm

YB Dimming Spiral  Compact Fluorescent Bulb

Voltage: 100-120V, 220-240V
Dimming energy saving lamp
Various pattern, power 5W-85W available
Harmonic wave and EMC
Lamp holder: E27, B22,E40
Frequency: 60HZ/50HZ
Life: 6000 H
Color temperature: 2700K, 4000K, 6400K

Model Wattage
(W)
Size(MM)
d l
Quantity/box Carton meas.
YB-DIMMING 55 82 185 25 445x445x240
YB-DIMMING 80 82 200 25 445x445x280
YB-DIMMING 105 82 215 25 445x445x290

YB Plug in Spiral Compact Fluorescent Bulb

Voltage: 100V-120V,220V-240V
Frequency: 60HZ/50HZ
Lamp holder: E14, E27, B22
Color temperature: 2700K, 4000K, 6400K
Life: 6000 H

Plastic lamp tube with various kinds ,2U,3U,4U, SPIRAL, 9W—45W Available.

Good anti-disturbance, good light control consistency.
