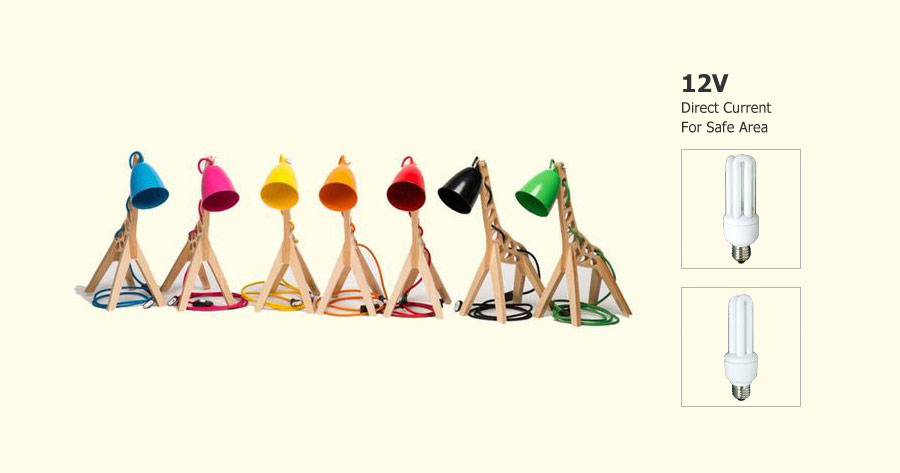

12V Compact Fluorescent Bulb
5W-13W, 12V, 2700K-6400K, Energy Saving Lamp
Jinhui wholesales 12V Compact Fluorescent Bulb from China, Just 200 pieces get wholesale price, right now.
The 12V compact fluorescent bulb consists of a high performance electronic ballast and a 2U shaped trichromatic fluorescent lamp. The whole unit is compact and simple in construction and highly effective in light emitting, with soft light, excellent chromaticness and low heat-emission. Moreover, it can be instantly started even at a comparatively low temperature or voltage.
Model: YB-12V-1 (2U 12V Compact Fluorescent Bulb )
Supply Voltage:
12V
Color Temperature:
2700K or 6400K or Black
Base Type:
E27, B22, E14
Tube Color :
Purple & White
| Model |
Wattage (W) |
Luminous Flux(lm) |
Diameter (mm) |
Length (mm) |
Carton meas. (100 pcs) |
| YB-12V-1 | 5 | 250 | 46 | 125 | 52.5*26.5*32.5cm |
| YB-12V-1 | 7 | 350 | 46 | 135 | 52.5*26.5*34.5cm |
| YB-12V-1 | 9 | 450 | 46 | 145 | 52.5*26.5*36.5cm |
| YB-12V-1 | 11 | 550 | 46 | 155 | 52.5*26.5*38.5cm |
| YB-12V-1 | 13 | 650 | 46 | 165 | 52.5*26.5*40.5cm |
* Fluorescent black light is optional
Model: YB-12V-10 (3U 12V Compact Fluorescent Bulb )
Supply Voltage:
12V
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27
| Model |
Wattage (W) |
Luminous Flux(lm) |
Diameter (mm) |
Length (mm) |
Carton meas. (100 pcs) |
| YB-12V-10 | 9 | 550 | 48 | 130 | 54.5*27.5*33.5cm |
| YB-12V-10 | 11 | 550 | 48 | 130 | 54.5*27.5*33.5cm |
| YB-12V-10 | 13 | 650 | 48 | 140 | 54.5*27.5*35.5cm |
