Electronic Ballast / Plug-in Compact Fluorescent Lamp
5W-26W, 100-240V, 2700K-6400K, Electronic Ballast
Jinhui wholesales Electronic Ballast / Plug-in Compact Fluorescent Lamp from China, Just 200 pieces get wholesale price, right now.

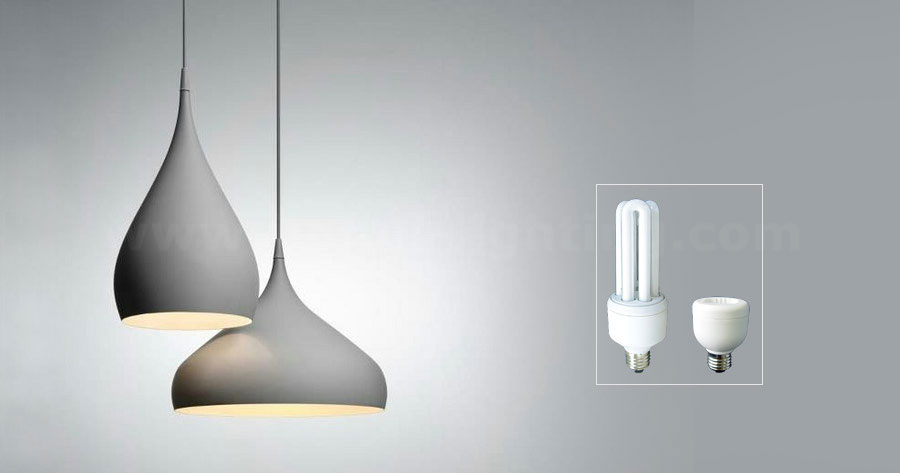

The special design of the electronic compact fluorescent ballast makes the compact fluorescent tube to be separated and replaced separately from the socket base (also called fluorescent lampholder ). Once the bulb tube is found in failure (burn out), replacement is quick and easy by any bulb tubes as indicated at the packing. This makes the best in the environmental and economic considerations without total disposal of the bulb. Also, the bulb tubes can be available from many countries.
R7S energy saving lamp for flood lighting fixture:
The new R7S energy saving lamp is designed for replacing conventional 118mm halogen lamp. Its more friendly environmental with less heat and UV and also more energy saving and efficient with high flux. It can be replaced directly.
Specification of R7S energy saving lamp:
- Cap Type: R7S
- Tube: 3U / 4U / Spiral
- Wattage: 24W/30W
- Voltage: 220-240V
- Equivalent Wattage: 125W/150W
- Colour : 2700-6500K
- Lifetime: 8000H
- Lumens: 1520lm/1800lm
- Dimensions: 60*63.1*118mm
Feartures of R7S energy saving lamp:
- long life up to 10000hrs
- saving energy up to 80% saving
- instant on, flicker free
- Available color temprature: 2700K,6500K
- certificate: ISO, CE, EMC, RHOS
- high lumen output
- excellent lumen maintenance
Application of R7S energy saving lamp:
Open hangling, outdoor lights, table lamp, floor lamp,ceiling fixture and wall lightings, etc.
Model: YB-8 Replacement Compact Fluorescent Bulb
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27
| Model |
Wattage (W) |
Luminous Flux(lm) |
Diameter (mm) |
Length (mm) |
Carton meas. (100 pcs) |
| YB-8 | 11 | 550 | 58 | 145 | 64.5*32.5*36.5cm |
| YB-8 | 13 | 650 | 58 | 155 | 64.5*32.5*38.5cm |
| YB-8 | 15 | 750 | 58 | 164 | 64.5*32.5*40.5cm |
| YB-8 | 18 | 900 | 58 | 170 | 64.5*32.5*41.5cm |
| YB-8 | 20 | 1000 | 58 | 175 | 64.5*32.5*42.5cm |
| YB-8 | 22 | 1100 | 58 | 180 | 64.5*32.5*43.5cm |
| YB-8 | 24 | 1200 | 58 | 185 | 64.5*32.5*44.5cm |
| YB-8 | 26 | 1300 | 58 | 190 | 64.5*32.5*45.5cm |
** For this compact fluorescent bulb, If you replace fluorescent tube, please adopt tube with G24q feet and G24dfeet(2 pin and 4 pin tubes are available). You would better adopt our tubes.We can not assure the long life of compact fluorescent bulbs, if you adopt other fluorescent tubes.
Model: YB-38 Electronic Ballast / Compact Fluorescent Bulb Holder
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27
| Model |
Wattage (W) |
Tube Feet |
Diameter (mm) |
Length (mm) |
Carton meas. (200 pcs) |
| YB-38 | 5 | G23 | 40 | 81 | 46.5*23.5*39cm |
| YB-38 | 7 | 40 | 81 | 46.5*23.5*39cm | |
| YB-38 | 9 | 40 | 81 | 46.5*23.5*39cm | |
| YB-38 | 11 | 40 | 81 | 46.5*23.5*39cm |
** G23 is for choke/starter operation
Model: YB-39 Electronic Ballast / Compact Fluorescent Bulb Holder
Supply Voltage:
100-240V/50-60Hz
Color Temperature:
2700K or 6400K
Base Type:
E26, B22, E27
| Model |
Wattage (W) |
Tube Feet |
Diameter (mm) |
Length (mm) |
Carton meas. (100 pcs) |
| YB-39 | 9 | 56 | 77 | 61.5*31.5*21cm | |
| YB-39 | 11 | 56 | 77 | 61.5*31.5*21cm | |
| YB-39 | 13 | 56 | 77 | 61.5*31.5*21cm | |
| YB-39 | 15 | 56 | 77 | 61.5*31.5*21cm | |
| YB-39 | 18 | 56 | 77 | 61.5*31.5*21cm | |
| YB-39 | 20 | 56 | 77 | 61.5*31.5*21cm |
** G23 and G24d is for choke/starter operation
** G24q is for HF operation
Model: YB-PLS Replacement Compact Fluorescent Tube
Supply Voltage:
100-240V/50-60Hz
Shape: H,U,U∏,∏,A∏
Color Temperature:
2700K or 6400K
|
Watt (W) |
Voltage (V) |
Lumen (Lm) |
(Ra) |
Color Temperature (K) |
Life Time (H) |
Base (CAP TYPE) |
G.W. (Kg) |
N.W. (Kg) |
| 5 | 110/220 | 200 | ≥80 | 2700-7000 | 6000 | G23/2G7 | 7 | 6 |
| 7 | 110/220 | 315 | ≥80 | 2700-7000 | 6000 | G23/2G7 | 8 | 7 |
| 9 | 110/220 | 450 | ≥80 | 2700-7000 | 6000 | G23/2G7 | 9 | 8 |
| 11 | 110/220 | 702 | ≥80 | 2700-7000 | 6000 | G23/2G7 | 12 | 11 |
| 13 | 110/220 | 750 | ≥80 | 2700-7000 | 6000 | G23/2G7 | 13 | 11.5 |
| 13 | 110/220 | 750 | ≥80 | 2700-7000 | 6000 | GX23/2G7 | 11 | 10 |
|
Watt (W) |
L (mm) |
L1 (mm) |
C (mm) |
Ø (mm) |
Color Box (cm) |
Quantity/carton (pcs) |
Carton (cm) |
| 5 | 104 | 67 | 27.0 | 12.0 | 200 | 43.5x24.5x18 | |
| 7 | 135 | 98 | 27.0 | 12.0 | 200 | 29.5x23.5x34 | |
| 9 | 165 | 128 | 27.0 | 12.0 | 200 | 35.5x23.5x34 | |
| 11 | 234 | 197 | 27.0 | 12.0 | 200 | 43.5x25.5x34 | |
| 13 | 249 | 212 | 27.0 | 12.0 | 200 | 43.5x27x34 | |
| 13 | 175 | 138 | 27.0 | 12.0 | 200 | 38x23.5x34 |
Model: YB-PLC Replacement Compact Fluorescent Tube
Supply Voltage:
100-240V/50-60Hz
Shape: H,U,U∏,∏,A∏
Color Temperature:
2700K or 6400K
|
Watt (W) |
Voltage (V) |
Lumen (Lm) |
(Ra) |
Color Temperature (K) |
Life Time (H) |
Base (CAP TYPE) |
G.W. (Kg) |
N.W. (Kg) |
| 7 | 110/220 | 350 | ≥80 | 2700-7000 | 6000 | G24d-1/G24q-1 | 5 | 4 |
| 9 | 110/220 | 480 | ≥80 | 2700-7000 | 6000 | G24d-1/G24q-1 | 5 | 4 |
| 10 | 110/220 | 530 | ≥80 | 2700-7000 | 6000 | G24d-1/G24q-1 | 6 | 5 |
| 13 | 110/220 | 750 | ≥80 | 2700-7000 | 6000 | G24d-1/G24q-1 | 8 | 7 |
| 18 | 110/220 | 1080 | ≥80 | 2700-7000 | 6000 | G24d-2/G24q-2 | 9 | 8 |
| 26 | 110/220 | 1560 | ≥80 | 2700-7000 | 6000 | G24d-3/G24q-3 | 10 | 9 |
| 13 | 110/127 | 750 | ≥80 | 2700-7000 | 6000 | GX23-2 | 8 | 5 |
|
Watt (W) |
L (mm) |
L1 (mm) |
C (mm) |
Ø (mm) |
Color Box (cm) |
Quantity/carton (pcs) |
Carton (cm) |
| 7 | 102 | 60 | 27.0 | 12.0 | 200 | 37x37x28 | |
| 9 | 112 | 70 | 27.0 | 12.0 | 200 | 37x37x28 | |
| 10 | 119 | 77 | 27.0 | 12.0 | 100 | 37x37x15 | |
| 13 | 149 | 100 | 27.0 | 12.0 | 100 | 37x37x17 | |
| 18 | 154 | 112 | 27.0 | 12.0 | 100 | 37x37x19 | |
| 26 | 164 | 122 | 27.0 | 12.0 | 100 | 37x37x20 | |
| 13 | 119 | 77 | 27.0 | 12.0 | 100 | 37x37x15 |
