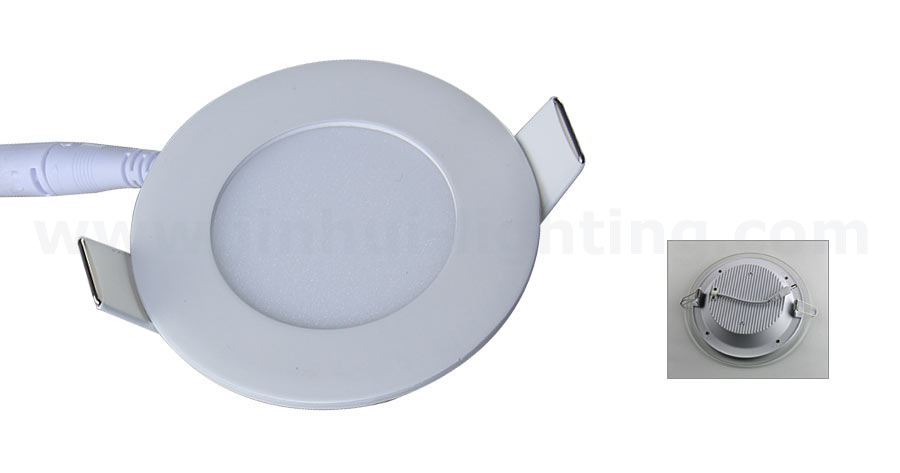

Led Panel Light
3W-60W, 85-265V, 2700K-6400K, Panel
Jinhui wholesales Led Panel Light from China, Just 200 pieces get wholesale price, right now.
LED Panel Light, is created unique LED products, which is perfect LED ceiling fixture for office and shop, replace the grille lantern lighting, with the same size--- 600x600mm, 600x300mm, 1200x600mm installing ceiling board, Aluminum alloy materials by spray paint or anodic oxidation looks uniform surface on the white ceiling.
LED panel light, emit soft bright healthy rays, low energy consumption, high lumen output, luxury quality, has been a trend instead of the traditional grille lantern fluorescent fixture.
With huge demands from the global markets, like Middle East, US, Russia, Europe and Latin America…
Character:
- It works AC 85V ~ 265V wide voltage.
- New modern design.
- Long lifespan 3,0000 hours.
- No flicker, no ultraviolet rays, no infrared.
- Output 3,000pcs per day.
- OEM,ODM for wholesales and importers
- FCC, CUL, SAA,PSE, SAA,CE,GS, ROHS, SASO,VDE,NOM, ISO90001.
Application:
Widely used in Decorative lighting, accent lighting, closet lighting, ceiling lighting, etc.
Warnings & Cautions: No dimmable
Item: YB2001
Product Name: LED Panel Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 85mm~225mm
Base Type: Direct line
Material: Aluminium
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (100 pcs) |
| 3 | 165 | 15 | ∮85 | 47*24*48cm |
| 4 | 250 | 20 | ∮106 | 39*58*36cm |
| 6 | 390 | 30 | ∮120 | 39*58*36cm |
| 9 | 630 | 45 | ∮146 | 58*58*25.5cm |
| 12 | 860 | 60 | ∮172 | 58*58*25.5cm |
| 15 | 1060 | 75 | ∮190 | 57*57*31cm |
| 18 | 1480 | 90 | ∮225 | 57*57*31cm |
Item: YB2002
Product Name: LED Panel Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 85mm~225mm
Base Type: Direct line
Material: Aluminium
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (100 pcs) |
| 3 | 165 | 15 | 85*85 | 47*24*48cm |
| 4 | 250 | 20 | 106*106 | 39*58*36cm |
| 6 | 430 | 30 | 120*120 | 39*58*36cm |
| 9 | 650 | 45 | 146*146 | 58*58*25.5cm |
| 12 | 880 | 60 | 172*172 | 58*58*25.5cm |
| 15 | 1180 | 75 | 190*190 | 57*57*31cm |
| 18 | 1480 | 90 | 225*225 | 57*57*31cm |
Item: YB2003
Product Name: LED Panel Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 300mm*300mm
Base Type: Direct line
Material: Aluminium
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (100 pcs) |
| 20 | 1670 | 100pcs | 300*300 | 43.5*37.5*60cm |
Item: YB2004
Product Name: 18W Daylight Square LED Panel Lamp
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 300mm*300mm
Base Type: Direct line
Material: Aluminium
| Model No. | YB2004 - Led Panel Lamp |
| Light Source | SMD |
| Luminous Flux | 1600lm |
| Luminous Efficiency | 88lm/w |
| Base | Line |
| Color Rendering Index(CRI) | Ra>80 |
| Working Temperature | -20°C~60°C |
| Color Temperature | Warm White(WW):2800-3200K |
| Pure White(PW):4000-4500K | |
| Cool White(CW):6000-6500K | |
| Certificates | CE, UL |
| Dimmable Type: | No dimming |
| Lamp Dimension | 300 X 300mm |
| Warranty | 3 years |
| Life Time | 40000h |
Item: YB2101
Product Name: LED Panel Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 600mm*600mm
Base Type: Direct line
Material: Aluminium
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (100 pcs) |
| 48 | 4800 | 228 | 600*600 | 74*68*60cm |
Item: YB2102
Product Name: LED Panel Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 600mm*300mm
Base Type: Direct line
Material: Aluminium
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (100 pcs) |
| 30 | 3000 | 168 | 600*300 | 74*37.5*60cm |
Item: YB2103
Product Name: LED Panel Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 1200mm*600mm
Base Type: Direct line
Material: Aluminium
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (100 pcs) |
| 40 | 4000 | 176 | 1200*600 | 134.5*37.5*60cm |
Item: YB2104
Product Name: LED Panel Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K Red/Blue/Green
Diameter: 85mm~225mm
Base Type: Direct line
Material: Aluminium
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Hole size. (mm) |
| 4 | 240 | 15 | 110x110 | 95 |
| 9 | 360 | 20 | 155x155 | 135 |
| 16 | 960 | 30 | 180x180 | 160 |
| 25 | 1500 | 45 | 200x200 | 180 |
Item: YB2401
Product Name: LED Panel Ceiling Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K
Diameter: 85mm~225mm
Base Type: Direct line
Material: Steel + PC
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (6 pcs) cm |
| 30 | 2500 | 150/2835 | 600x600 | 62.5x25.5x63 |
| 36 | 2800 | 180/2835 | 600x600 | 62.5x25.5x63 |
| 42 | 3200 | 210/2835 | 600x600 | 62.5x25.5x63 |
Item: YB2402
Product Name: LED Panel Ceiling Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K
Diameter: 85mm~225mm
Base Type: Direct line
Material: Steel
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (6 pcs) cm |
| 40 | 3200 | 200/2835 | 300x1200 | 33x25.5x123 |
Item: YB2403
Product Name: LED Panel Ceiling Light
Supply Voltage: 85-265V/50-60Hz
Color Temp(K): 2700K ~ 6400K
Diameter: 85mm~225mm
Base Type: Direct line
Material: Steel + PC
|
Wattage (W) |
Luminous Flux(lm) |
LED (qty/type) |
Size (DxL mm) |
Carton Meas. (6 pcs) cm |
| 60 | 4500 | 300/2835 | 600x1200 | 62.5x25.5x123 |
Item: YB2404
Product Name: Square Daylight 36W Led Panel
- New unique design Good Quality 36W Led Panel
- Efficient lighting, replace fluorescent tube fixture
- 75% energy saving compared with fluorescent tube fixture
- Less replacement to save maintenance cost
- Standard IEC size, Standard lamp holder, compatible with electronic transformer
- Aluminum die-casting housing wrapped by thermal plastic and plastic cover
- Constant current driver
| Model No. | YB2404 - Led Panel Light |
| Power | 36W |
| Input Voltage | 85-265V |
| Frequency Range | 50Hz--60Hz |
| Light Source | SMD |
| Luminous Flux | 2500lm |
| Luminous Efficiency | 70lm/w |
| Light Body Material | AL (Aluminium) |
| Base | Line |
| Color Rendering Index(CRI) | Ra>80 |
| Working Temperature | -20°C~60°C |
| Color Temperature | Warm White(WW):2800-3200K |
| Pure White(PW):4000-4500K | |
| Cool White(CW):6000-6500K | |
| Certificates | CE, UL |
| Dimmable Type: | No dimming |
| LED Quantity | 180pcs |
| Lamp Dimension | 600 X 600mm |
| Carton Size: | 60X60X10cm |
| Warranty | 3 years |
| Life Time | 40000h |
Item: YB2501
Product Name: 18W Round Cool White Led Light Panel
- New unique design 2016 Quality Factory Price CE UL 18W SMD Daylight Led Light Panel
- Efficient lighting, replace fluorescent tube fixture
- 75% energy saving compared with fluorescent tube fixture
- Less replacement to save maintenance cost
- Standard IEC size, Standard lamp holder, compatible with electronic transformer
- Aluminum die-casting housing wrapped by thermal plastic and plastic cover
- Constant current driver
| Model No. | YB2501 - Led Panel Light |
| Power | 18W |
| Input Voltage | 85-265V |
| Frequency Range | 50Hz--60Hz |
| Light Source | SMD |
| Luminous Flux | 1600lm |
| Luminous Efficiency | 88lm/w |
| Light Body Material | AL (Aluminium) |
| Base | Line |
| Color Rendering Index(CRI) | Ra>80 |
| Working Temperature | -20°C~60°C |
| Color Temperature | Warm White(WW):2800-3200K |
| Pure White(PW):4000-4500K | |
| Cool White(CW):6000-6500K | |
| Certificates | CE, UL |
| Dimmable Type: | No dimming |
| LED Quantity | 80pcs |
| Lamp Dimension | D190 X H20mm |
| Carton Size: | 59X31X24cm |
| Warranty | 3 years |
| Life Time | 40000h |
Item: YB2502
Product Name: 18W Square Led Panel Light with Round Corner
- New unique design 18W SMD Led Ceiling Panel Light
- Efficient lighting, replace fluorescent tube fixture
- 75% energy saving compared with fluorescent tube fixture
- Less replacement to save maintenance cost
- Standard IEC size, Standard lamp holder, compatible with electronic transformer
- Aluminum die-casting housing wrapped by thermal plastic and plastic cover
- Constant current driver
| Model No. | YB2502 - Led Panel Light |
| Power | 18W |
| Input Voltage | 85-265V |
| Frequency Range | 50Hz--60Hz |
| Light Source | SMD |
| Luminous Flux | 1600lm |
| Luminous Efficiency | 88lm/w |
| Light Body Material | AL (Aluminium) |
| Base | Line |
| Color Rendering Index(CRI) | Ra>80 |
| Working Temperature | -20°C~60°C |
| Color Temperature | Warm White(WW):2800-3200K |
| Pure White(PW):4000-4500K | |
| Cool White(CW):6000-6500K | |
| Certificates | CE, UL |
| Dimmable Type: | No dimming |
| LED Quantity | 80pcs |
| Lamp Dimension | 185 X 185 X 20mm |
| Carton Size: | 18.5X18.5X20cm |
| Warranty | 3 years |
| Life Time | 18W aluminium frame LED panels, Manufacturer and exporter in China.40000h |
